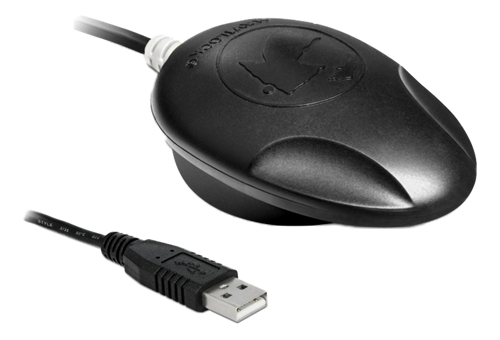

Navilock NL-8012U USB 2.0 Multi GNSS Receiver u-blox 8 4.5 mThe USB 2.0 Multi GNSS Receiver based on u-blox 8 chipset has a built-in antenna for high sensitivity. You can use this GNSS Receiver with a laptop and a suitable routing software for navigation.Specification• Connector: USB 2.0 Type-A male• Chipset: u-blox 8 UBX-M8030-KT• Frequency: GPS: L1, 1575.4200 MHz GLONASS: L1, 1602 (k x 0,5625) MHz BEIDOU COMPASS: B1, 1561.0980 MHz GALILEO: E1, 1575.4200 MHz QZSS: L1, 1575.4200 MHz• Accepts the signals of up to 72 satellites at the same time• Supports AssistNow online / offline, SBAS (WAAS, EGNOS, QZSS and MSAS)• Supports NMEA 0183 protocols: GGA, GSA, GSV, RMC, VTG• Auto Baud Rate up to 115200 bps• Update rate: single GNSS: 18 Hz (e.g. GPS solo) multi GNSS: 10 Hz (e.g. GPS+GLONASS)• Sensibility max. -167 dBm• IPX6 protection class• Magnetic, non-slip on the bottom• LED-indicator for GPS status• Operating temperature: -20 °C ~ 60 °C• Power supply: 5 V DC• Current consumption: max. 45 mA• Cold start in ca. 26 seconds• Hot start in ca. 1 second• Positioning accuracy: 2.5 m CEP (Circular Error Probable) and 2 m CEP with SBAS• Cable length: ca. 4.5 m• Dimensions (LxWxH): ca. 65 x 45 x 22 mmMicrosoft Sensor and Location Platform (Website)• Profit from Windows applications (e.g. weather, maps, etc)• Supporting the GNSS location platform API (32 bit)System requirements• Windows Vista/7/8/8.1/10, Linux Kernel 2.6• PC or laptop with a free USB Type-A port• For devices with OTG function and optional OTG adapter: Windows 10Package content• USB 2.0 receiver• Navilock support CD incl. driver and user manual
